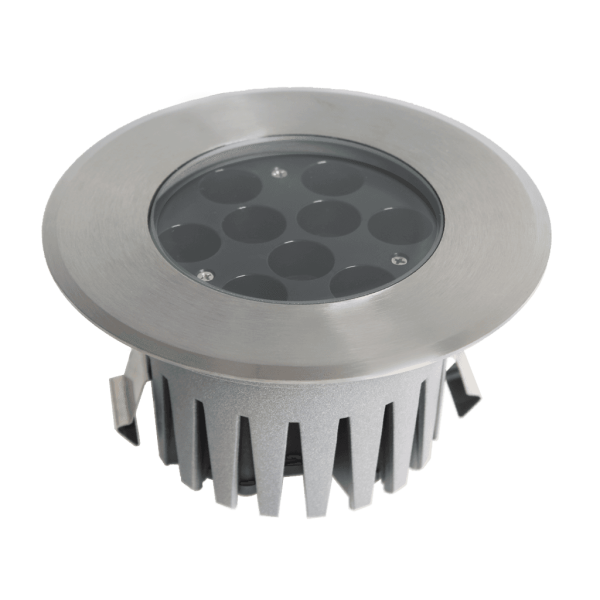

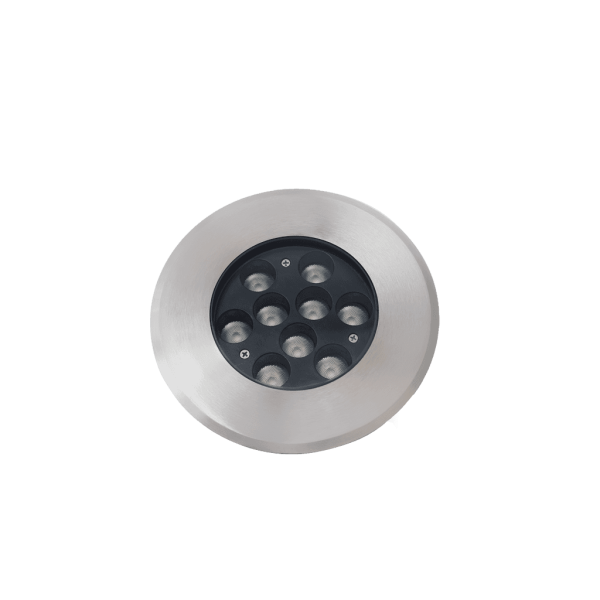

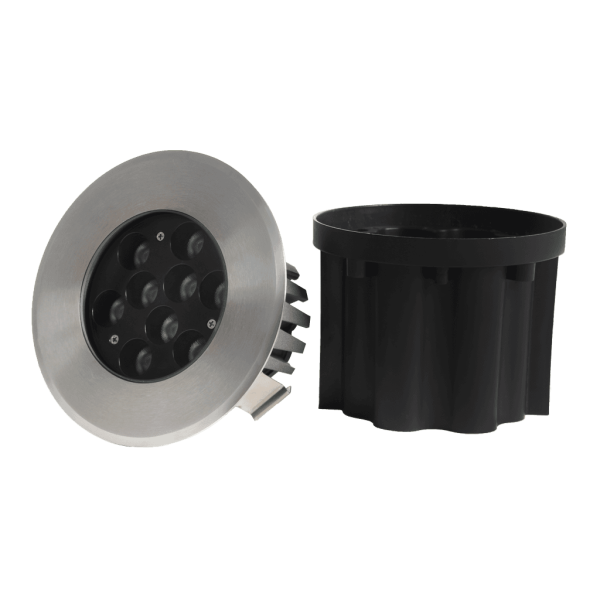

IP67 Waterproof 9W LED Round Inground Light outdoor Aluminum Recessed Round Unground light

POWER:  9W
SIZE      :   ø160xH120mm
LED       :  LUMILEDS/OSRAM/CREE
CRI        : 80/90
SDCM   :  3/5
CCT       :  2700K-6500K/Tunable White / RGB 3in1 / RGBW 4in1
Control:  On-Off
Input Voltage:DC24V/AC220-240V
Dimming: DALl/0-10V /Triac/PWM/DMX512
Beam Angle: 8°/15°/20°/30°/35°(Lens)
Light Window:Tempered glass.T=8mm
Glass pressure capacity:Full area=3128 kgs
Material: ADC12# Alluminum Alloy, finish: Electrostatic powder coating
Faceplate use 304# stainless steel
Waterproof: lP67
IK rate:           IK10
Warranty: 2-5 Years
Download

Description

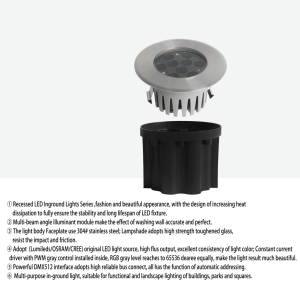

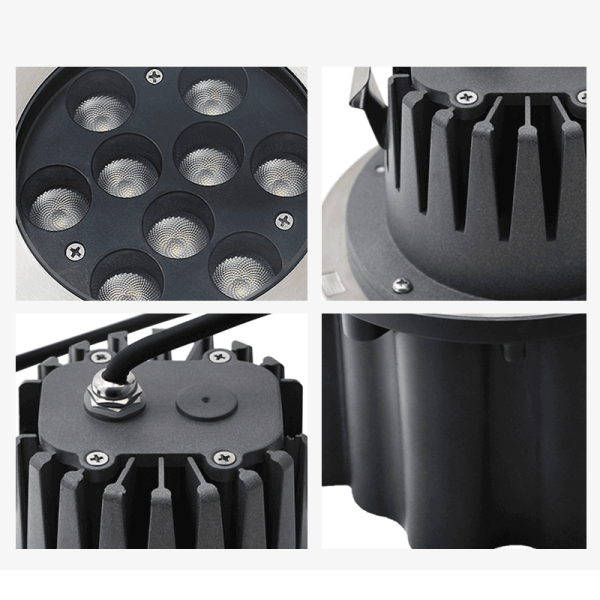

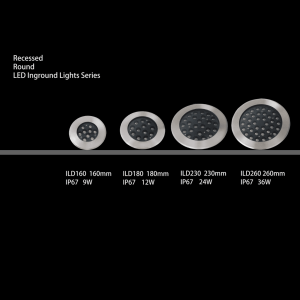

① Recessed LED Inground Lights Series ,fashion and beautiful appearance, with the design of increasing heat
dissipation to fully ensure the stability and long lifespan of LED fixture.
② Multi-beam angle illuminant module make the effect of washing wall accurate and perfect.
③ The light body Faceplate use 304# stainless steel; Lampshade adopts high strength toughened glass,
resist the impact and friction.
④ Adopt (Lumileds/OSRAM/CREE) original LED light source, high flus output, excellent consistency of light color; Constant current
driver with PWM gray control installed inside, RGB gray level reaches to 65536 dearee equally, make the light result much beautiful.
⑤ Powerful DMX512 interface adopts high reliable bus connect, all has the function of automatic addressing.
⑥ Multi-purpose in-ground light, suitable for functional and landscape lighting of buildings, parks and squares.

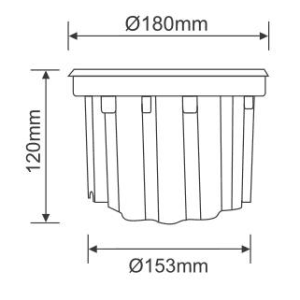

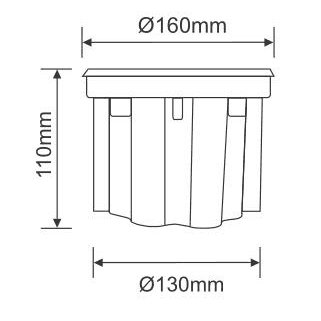

OUTLINE DIMENSION

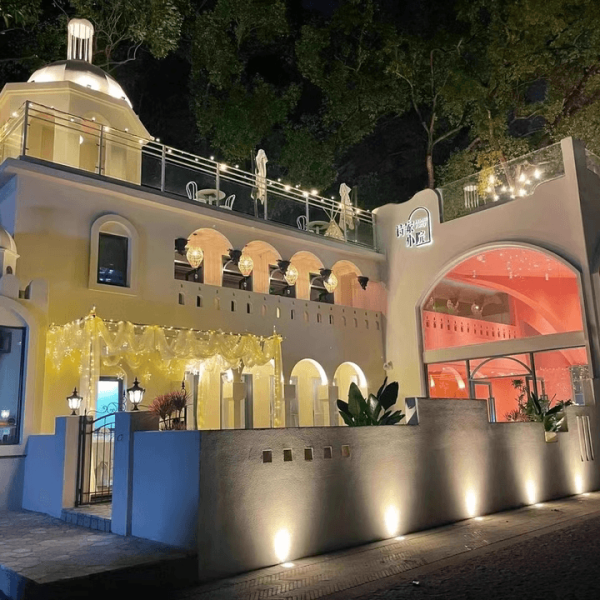

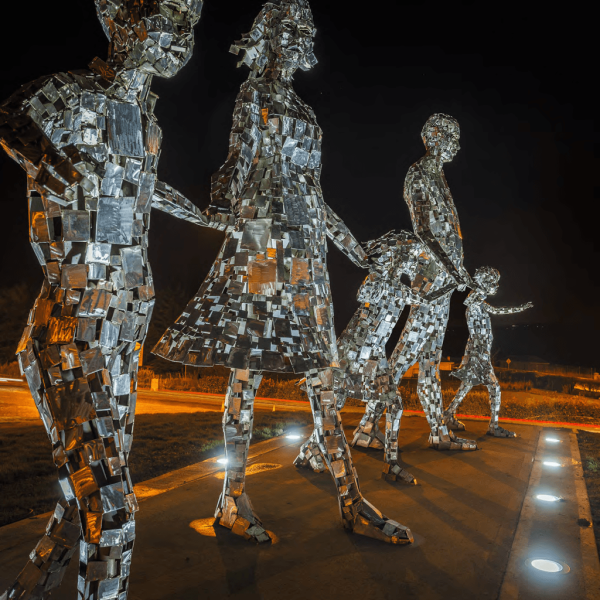

LIGHTING EFFECT DEMO

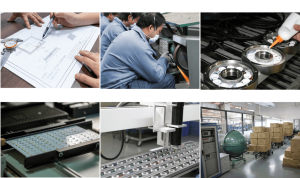

Assembly Work

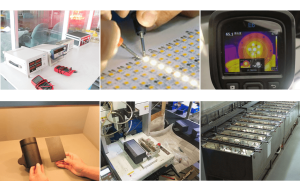

Test Work
